DX Excellence

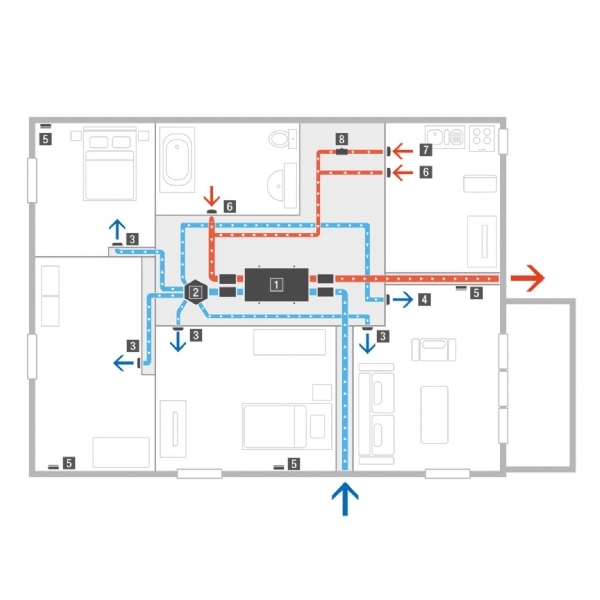

Η μονάδα παρέχει φρέσκο αέρα 230m3/h (στα 50Pa) που ακολούθως εισέρχεται στο HUB όπου γίνεται και η διανομή του. Το HUB περιέχει ειδικούς ελεγκτές παροχής αέρα οι οποίοι ρυθμίζουν την παροχή αέρος ανάλογα με τις μετρήσεις CO2 σε κάθε χώρο.
Αρχεία
| Επιδοτούμενο | Ναι |
Περιγραφή

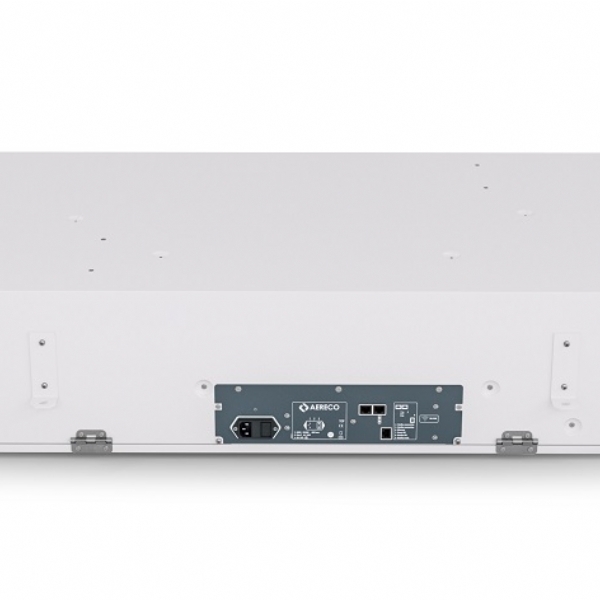

| Ventilation units | DXR | DXA |
|---|---|---|
| Label (EU Ecodesign Directive) | A+ | A+ |
| Max. airflow (m3/h) | 230 | 230 |
| Other nominal airflows (m3/h) | 80 / 140 / 200 / 230 | 80 / 140 / 200 / 230 |
| Airflow compensation (filter clogging) | automatic | automatic |
| Airflow balance (supply and exhaust) | automatic | automatic |
| Sound power level Lw @ 161 m3/h, 50 Pa (dB(A)) | 40 | 52 |
| Certifications | CE, EAC | CE |
| Power supply | 230 VAC, 50 Hz | 230 VAC, 50 Hz |
| Motor type | EC (x2) | EC (x2) |
| Power consumption @ 161 m3/h @50 Pa (W) | 34,2 | 36,5 |
| Power consumption @ 230 m3/h @50 Pa (W) | 91,0 | 92,0 |
| Sensors connections | RJ12 / RJ45 | RJ12 |
| DCV compatibility | Integrated | Integrated |
| Min - Max Number of sensors for modulation at supply | 1 - 5 | 1 - 5 |
| Min - Max Number of sensors for modulation at exhaust | 1 - 5 | 1 - 5 |
| Sensors type at supply | presence / C02 | presence / C02 |
| Exhaust units type | humidity / presence / switch / C02 / VOC | humidity / presence / switch / C02 / VOC |
| Exchanger | aluminium / counter flow type / 82% efficiency | polystyrene / counter flow type / 93% efficiency |
| Filters | on supply air: 1 x F7 / on exhaust air: 1 x G4 | on supply air: 2 x F7 / on exhaust air: 1 x G4 |
| Weight (kg) | 46 | 23 |

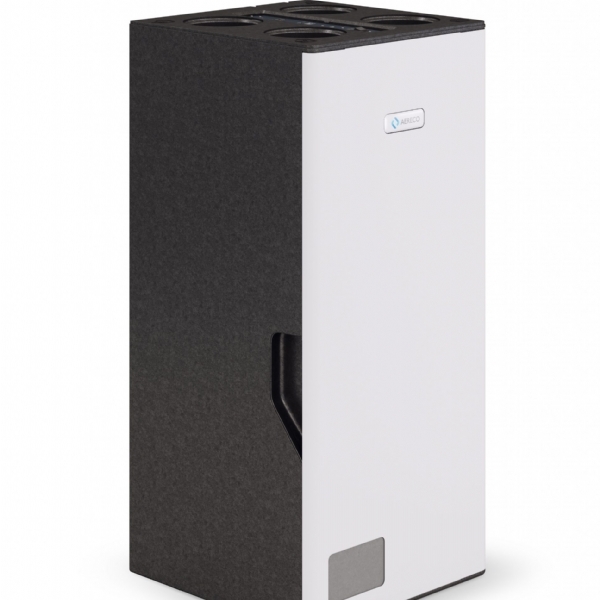

| Colour | white | black / Grey EPP - white painted Galvanized steel houssing (option) |
| Material (main) | galvanised steel with phonic and thermal insulation | expanded polypropylene (EPP) covered by a white galvanized metal sheet (optional) |
| Dimensions (mm) | with duct connectors: 260 x 650 x 1200 / without duct connectors: 260 x 650 x 1160 |
with duct connectors: 1428 x 552 x 545 / without duct connectors: 1188 x 552 x 545 |
| Max. number of main rooms | 6 | 6 |
| Max. number of technical rooms | 5 | 5 |
| Connections | 2 x (2 x ø160 mm) | 2 x (2 x ø160 mm) |
| Installation | horizontal only, to the false ceiling / 4 points of attachment |
2 wall fixed rails |
| Interface | Control module / Wifi | Control module / Wifi |
| Bypass | controlled by outdoor temperature / also used for free cooling |
controlled by outdoor temperature / also used for free cooling |
| Preheating (optional) | with resistance in fresh air ductwork from outside | with resistance in fresh air ductwork from outside |
| Condensation management | exhaust through lateral tube / optional condensate pump | exhaust through siphon / condensate pump |
| Installation room | frost free: +5°C < T°< +50°C | frost free: +5°C < T°< +50°C |
| Incoming outdoor fresh air or Extract | -5°C < T° < +50°C without preheating / -26°C < T° < +50°C with preheating |
-5°C < T° < +50°C without preheating / -26°C < T° < +50°C with preheating |
