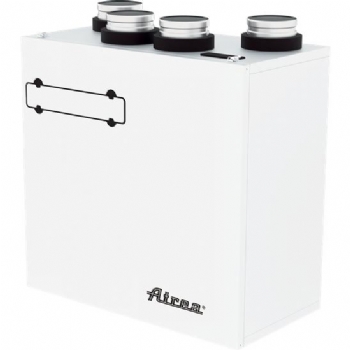

ATREA DUPLEX Pro V
Συμπαγείς μονάδες αερισμού ATREA DUPLEX Pro V με ανάκτηση θερμότητας σχεδιασμένες για κεντρικό εξαερισμό ίσης πίεσης οικογενειακών σπιτιών ή διαμερισμάτων.
Αρχεία
| Σειρά προϊόντος | DUPLEX PRO V |
Περιγραφή
| DUPLEX Pro V | 160 | 360 | 560 | |
|---|---|---|---|---|
| energy class 1) | - | A+ | A+ | A+ |
| maximum flow rate 2) | m3/h | 150 | 350 | 550 |
| sound power to ambient 3) | dB (A) | 37 | 36 | 40 |
| Max. heat recovery efficiency | % | 90 | 90 | 93 |
| Diameter of connecting ports | mm | 125 | 160 | 200 |
| Weight | kg | 53 | 76 | 100 |
| by-pass | - | yes | yes | yes |
| ower supply. fuses | - | 230V / 50 Hz, 16A char. C | 230V / 50 Hz, 16A char. C | 230V / 50 Hz, 16A char. C |
| Supply air filtration class | - | ISO Coarse 90% (G4) alternatively ISO ePM1 55% (F7) | ISO Coarse 90% (G4) alternatively ISO ePM1 55% (F7) | ISO Coarse 90% (G4) alternatively ISO ePM1 55% (F7) |
| Condensate drainage | mm | G5/4" X 32 / 40 (hadice 0.7) | G5/4" X 32 / 40 (hadice 0.7) | G5/4" X 32 / 40 (hadice 0.7) |
1) All types of controls built into the unit normally include a minimum of two inputs to connect the electrical signals that result from human manipulation of the light or other devices that automatically control the unit's output. These inputs must always be connected, or other types of sensors (e.g. CO , VOC, rH, etc.) must be connected instead.
2)The maximum flow rate is set at a pressure loss of 100 Pa
3)TThe listed value refers to the reference flow rate i.e. 70% of the maximum flow rate and a pressure loss of 50 Pa
